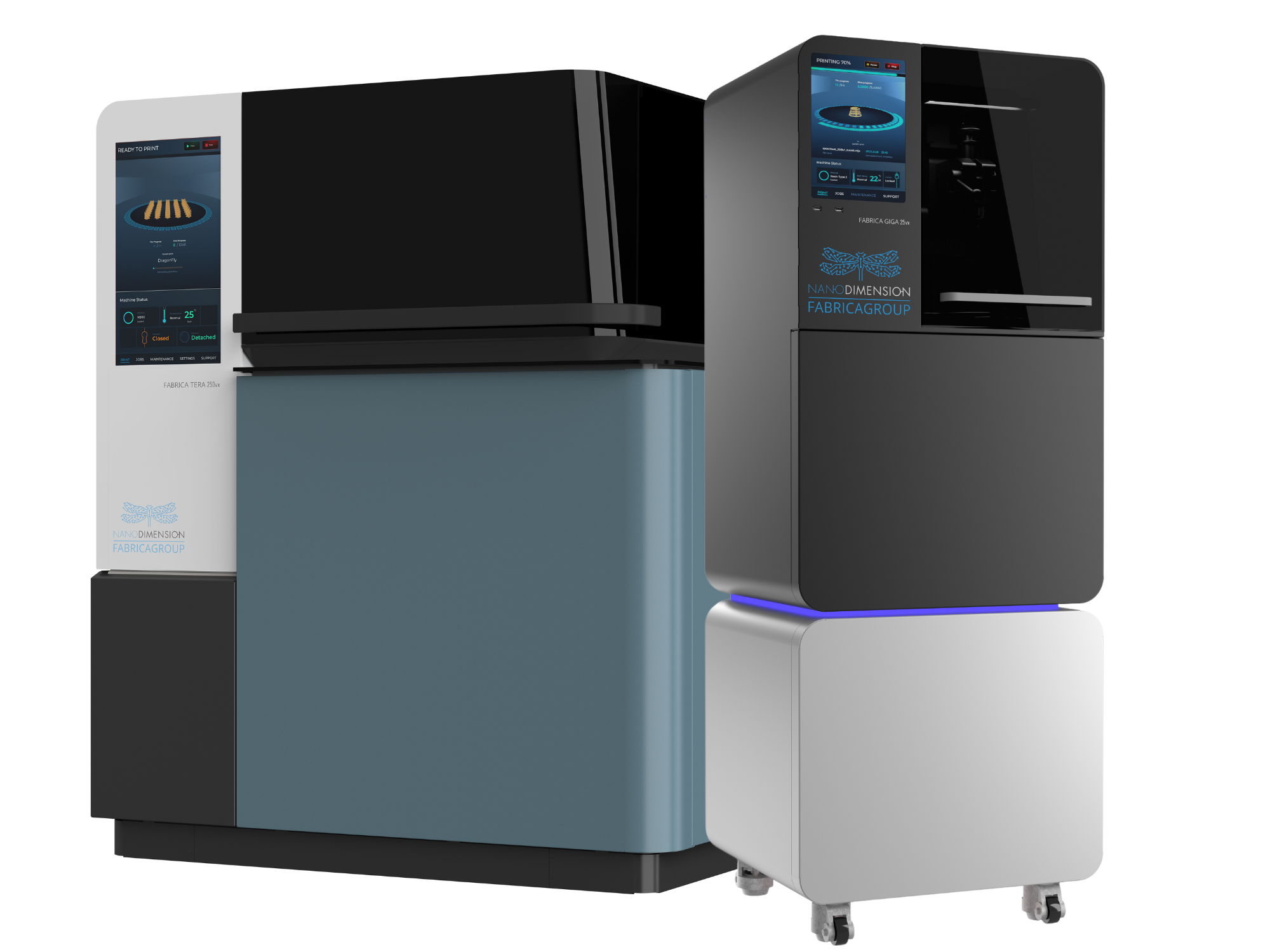

Fabrica Tera & Giga Systems
Additive Manufacturing Micron by Micron
Call to Action
Trusted by
Precision micro 3d printed parts with all the advantages of additive manufacturing.
"By seamlessly integrating micron-sized components into centimeter-scale test fixtures, Torramics achieved remarkable improvements in repeatability and efficiency. This overhaul slashed cycle times by over a month, showcasing a drug delivery system that is not only ten times smaller but also ten times more precise than existing models." Torramics Inc.
Precision
The Digital Light Processor (DLP) engine captures every detail in your designs.
Micron Resolution
Fabrica systems offer micron additive layers for the highest precision 3D parts enabling layers thinner than 5 microns and down to 1 micron.
Choose from our range of high precision materials or use other available resins.
Best in Class
Best in class materials optimized for incredibly high resolution, micro-level accuracy and precision.
Variety of applications
The wide range of materials displays a variety of mechanical properties, thermal resistance and specialized properties. Each material brings unique advantages, giving you the flexibility to select the material best suited for your use case.
Generate functional, micro 3d printed parts in hours - then repeat.
“At Accumold, the Tera 250vx is used to print micro-sized prototype parts and injection molds, and therefore decreases time-to-market for its customers, while at the same time stimulating the creation of parts with geometric complexity impossible using traditional micro injection molding technologies.” Accumold
Fast
A process that is more than x2 faster than any other micro 3d printing process. And can save up to 9 weeks vs. the development cycle for traditional micro injection molding.
Bypass Tooling
Produce high-mix, low-volume batches of parts at a time with no need for lengthy tooling setup.
Material excellence from the leader in precision micro am technology
Diverse Applications

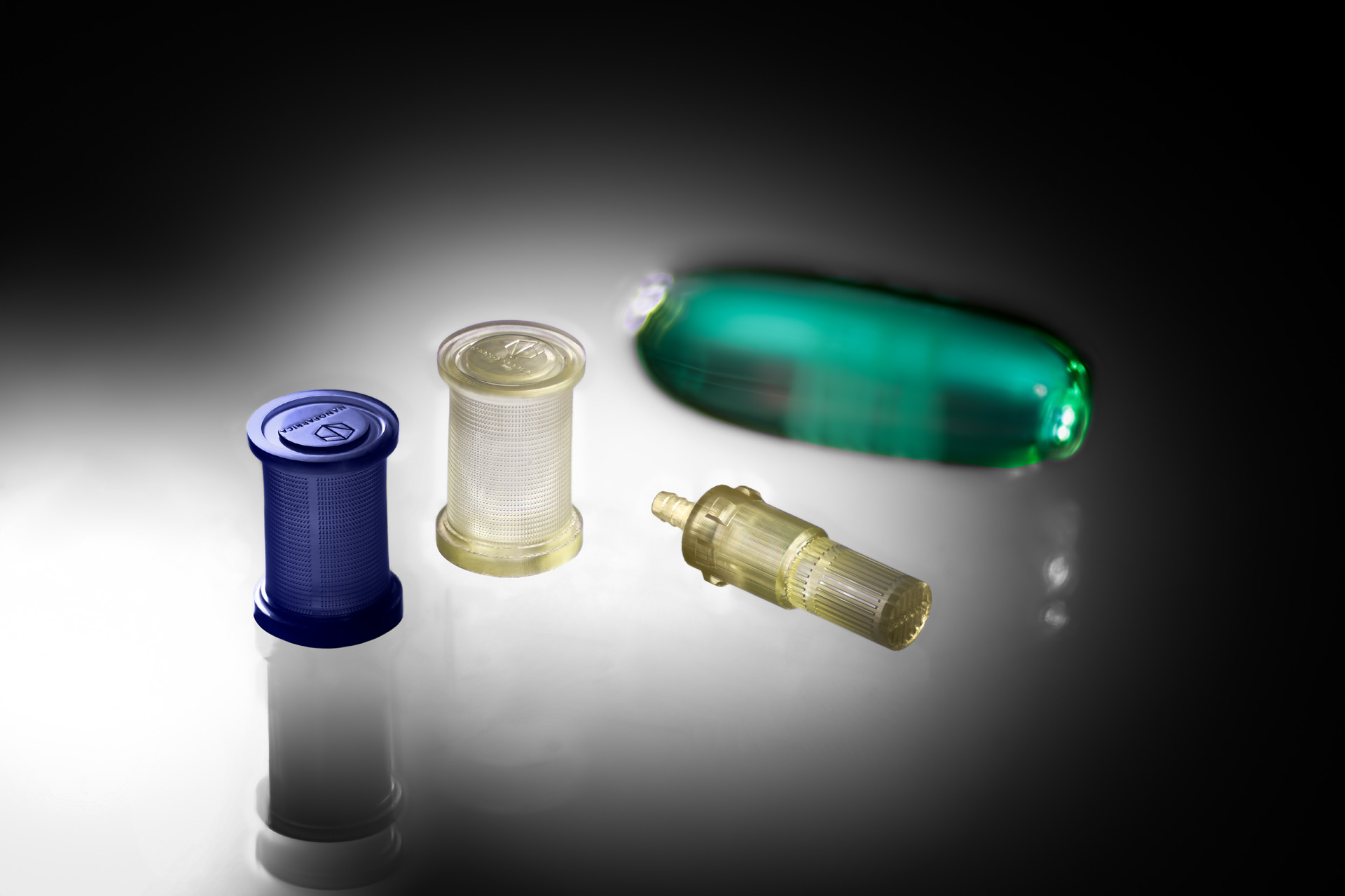

Polymer parts for a variety of industries – for medical devices, for electronics, for jewelry, for microfluidics and more.
Growing Opportunity
Increase your client base with cutting-edge micro-component capabilities.
Fabrica precision Micro-AM delivers precision connectors to be used in prototyping new devices
As electronic consumer products become more compact,
the ability to create and prototype
miniature parts becomes more critical

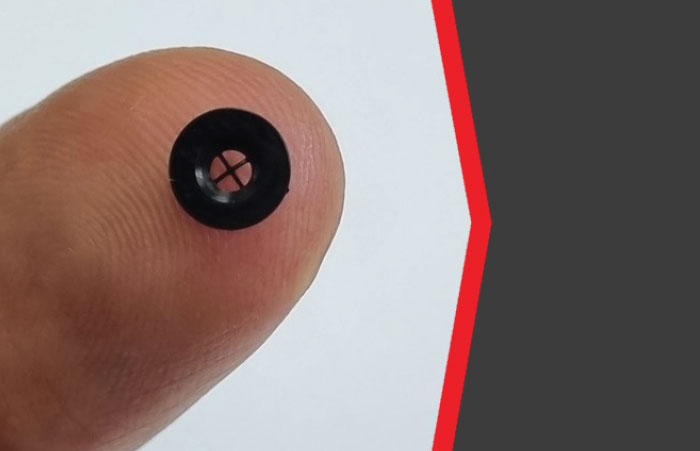

Miniaturized parts such as this microfilter enable manufacturers to test and innovate with new functionality at micro-sizes
| Specification | Tera 250vx | Tera 25vx |
|---|---|---|
| Build Volume | 50 mm x 50 mm x 100 mm | |
| X Y Resolution | 3.8 μm | 7.6 μm |
| Tolerance Accuracy* | +/- 2 μm | +/- 5 μm |
| Layer Thickness | Down to 1 μm | Down to 5 μm |
| Surface Roughness (Ra) | 0.4 μm | 0.9 μm |
| Weight (Net) | 450 kg | |
| Dimensions (W x D x H) | 134 cm x 81 cm x 170 cm | |
| Operating Temperature/ Humidity | 18 - 25°C / 30% | |
| Power | 100 - 240V 3KW | |
| Wavelength | 385 nm | |
| Materials | Wide selection of Fabrica materials and external resins (refer to safety and technical data sheets) | |
| Regulatory Compliance | CE | |
* Geometry dependent
| Specification | Giga 250vx | Giga 25vx |
|---|---|---|
| Build Volume | 6 mm x 9 mm x 45 mm | 12 mm x 18 mm x 45 mm |
| X Y Resolution | 3.8 μm | 7.6 μm |
| Tolerance Accuracy* | +/- 2 μm | +/- 5 μm |
| Layer Thickness | Down to 1 μm | |
| Surface Roughness (Ra) | 0.4 μm | 0.9 μm |
| Weight (Net) | 165 kg | |
| Dimensions (W x D x H) | 60 cm x 52 cm x 160 cm | |
| Operating Temperature/ Humidity | 18 - 25°C / 30% | |
| Power | 100 - 240V 3KW | |
| Wavelength | 385 nm | |
| Materials | Wide selection of Fabrica materials and external resins (refer to safety and technical data sheets) | |
| Regulatory Compliance | CE | |
* Geometry dependent
This data represents typical tested values at a controlled environment. Material properties can vary with part geometry, print orientation, print settings, environmental conditions and additional variables. To learn more about specific testing conditions, please contact a Nano Dimension representative. Specific performance of customer parts should be tested in accordance with customer’s specifications.
The above detailed data was tested, measured, or calculated using standard methods based on, inter alia, ASTM and IPC standards and are subject to change without notice. To the fullest extent permissible pursuant to applicable law, Nano Dimension (including any affiliate thereof) disclaims all warranties of any kind, express or implied. The above detailed data should not be used to establish design, quality control, or specification limits, and is not intended to substitute customer’s own testing to determine suitability for a particular application.
